Drying Cabinets

Drying Cabinets

Drying is an essential step when reprocessing reusable medical devices for their next safe use. Following a clinically dry protocol can reduce processing time as much as 40% overall.

Drying cabinets

Our drying cabinets are designed to maximize ease of operation and device drying capacity while withstanding the demands of everyday use. Fast and easy drying with no worries.

  • Drying Cabinets: Compact Models 135 / 136

    Drying Cabinets: Compact Models 135 / 136

    • Unit capacity 20 cu.ft.
    • Unit footprint 26 Inch W x 25 Inch D x 76 Inch H
    • Temperature setting 130-135F
    • Model 135: Stand-alone or recess-mount configuration
    • Model 136: Pass-through configuration
    • Polished stainless steel plenums and chamber bottom
    • Robust perforated solid stainless steel shelves
    • Digital controls with timed or constant drying options
    • See-through doors on each side of the chamber
    • 120V, 16A, 50/60Hz.
    • CSA listed
  • Drying Cabinets: Medium Models 330 / 340

    Drying Cabinets: Medium Models 330 / 340

    • Unit capacity 29 cu.ft.
    • Unit footprint 36 Inch W x 26.5 Inch D x 85 Inch H
    • Temperature setting 130-135F
    • Model 330: Stand-alone or recess-mount configuration
    • Model 340: Pass-through configuration
    • Polished stainless steel plenums and chamber bottom
    • Robust perforated solid stainless steel shelves
    • Digital controls with timed or constant drying options
    • See-through doors on each side of the chamber
    • 120V, 16A, 50/60Hz.
    • CSA listed
  • Drying Cabinets: Large Models 1009 / 1010

    Drying Cabinets: Large Models 1009 / 1010

    • Unit capacity 29 cu.ft.
    • Unit footprint 36 Inch W x 35 Inch D x 85 Inch H
    • Temperature setting 130-135F
    • Model 1009: Stand-alone or recess-mount configuration
    • Model 1010: Pass-through configuration
    • Polished stainless steel plenums and chamber bottom
    • Robust perforated solid stainless steel shelves
    • Digital controls with timed or constant drying options
    • See-through doors on each side of the chamber
    • 120V, 16A, 50/60Hz.
    • CSA listed

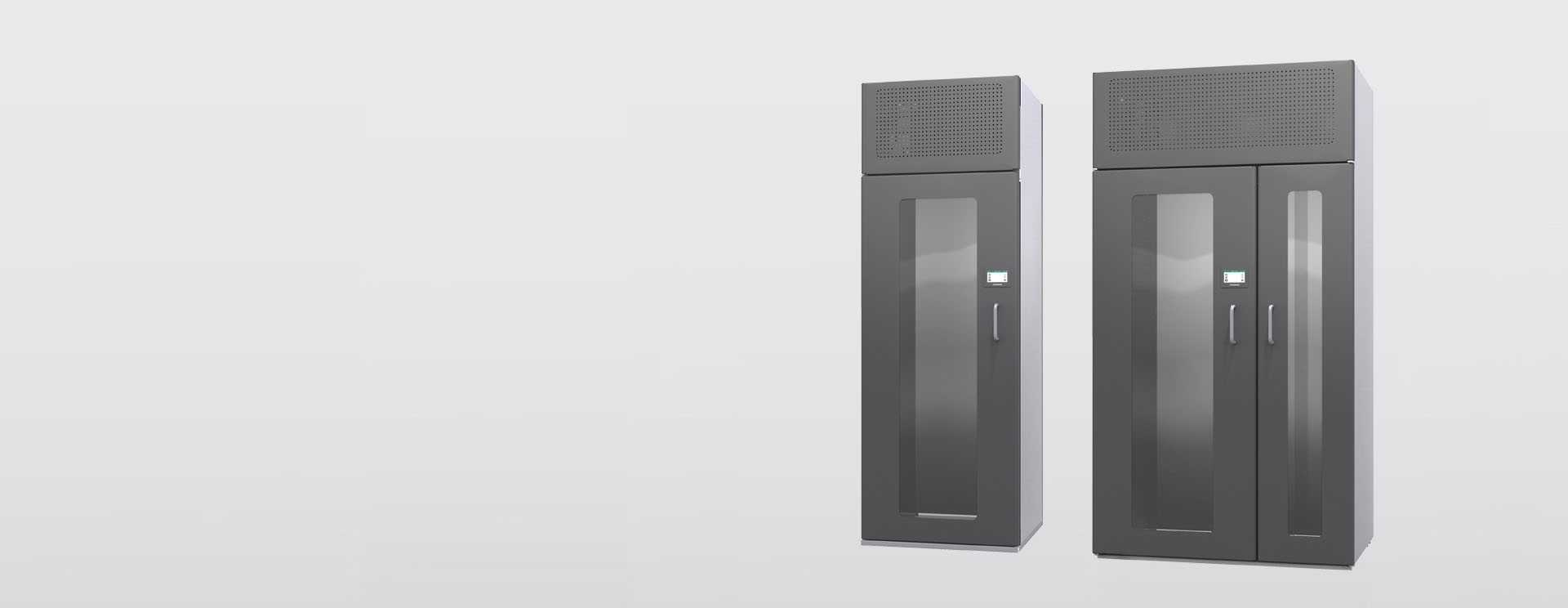

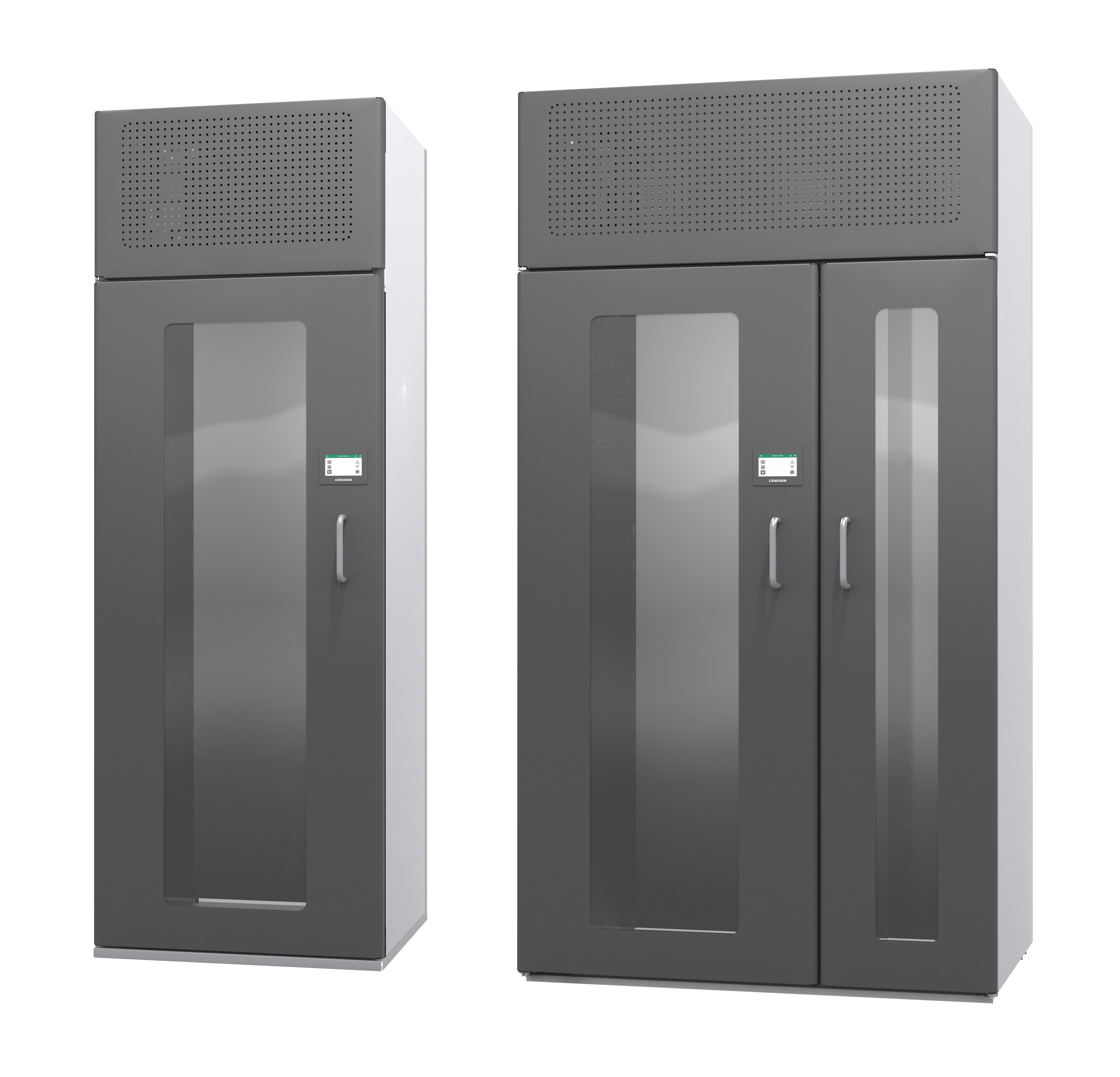

NEW Medical Device Drying Cabinets - 50 Series

#Model 150 and Model 350

Model 150 and Model 350

50 Series Product Description (192 KB PDF)



The new 50 series line includes two sizes, available in stand-alone, recessed, and pass-through configurations.



  • Large interior volume and a modular design permitting multiple device types and sizes
  • Rugged and cleanable interior/exterior surfaces. Doors with tempered glass window
  • High efficiency airflow drying modes
  • Intuitive user interface/diagnostics - Touch screen interface that displays cycle status, temperature, and system notifications. Proactive alerts to preventive maintenance needs - HEPA filter change notification
  • Versatile Device Drying Accessories - like tube drying rack, modular stainless shelves, Stainless small parts handling tray, Drip tray and patented Lumen drying system
  • Unit capacity 20 cu.ft. and 40 cu. ft.
  • Seismic brackets are HCAI/OSHPD Pre-Approved
  • Electrical Specifications - 120V, 16A, 50/60Hz

Medical Device Drying Cabinets - Classic Series

#Classic Series 130, 300 and 1000

Classic Series 130, 300 and 1000

Classic Series Product Guide (1 MB PDF)

Classic Series Product Specs (536 KB PDF)



The classic series line includes three sizes, available in stand-alone, recessed, and pass-through configurations.



  • Robust construction with stainless steel components
  • High efficiency air circulation, resulting in faster drying times
  • Programmable user interface with temperature and cycle time selection. Display shows cycle status, time remaining, and cabinet temperature. Visual signal when the cycle is complete and automatic HEPA filter change alert
  • Versatile Device Drying Accessories - like Tubing, Bag and Bottle drying fixtures, Half-width shelves or full-width shelves and patented Lumen drying system
  • Unit capacity – 20, 30 and 40 cu. ft.
  • Seismic brackets are HCAI/OSHPD Pre-Approved
  • Electrical Specifications - 120V, 16A, 50/60Hz

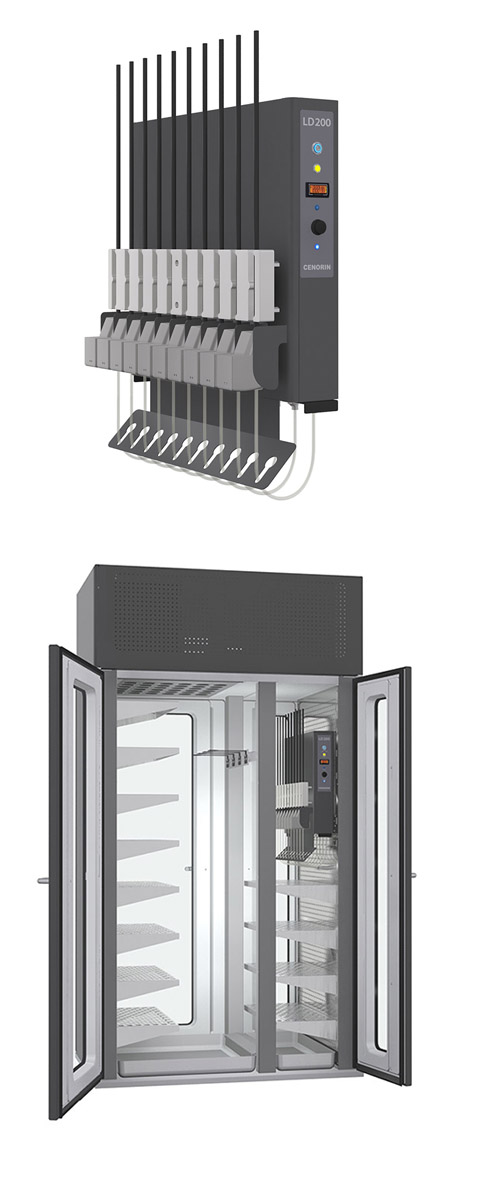

Patented LD100 Lumen Drying System



Using low pressure HEPA filtered air to all connected devices, the LD 100 accessory is designed specifically to dry endoscopes and robotic arms thereby helping departments reduce retained moisture incidents and speed the drying process.

#Using low pressure HEPA

Maximize safety and efficiency of your medical device drying cabinets with a reliable cost-effective solution to get lumened instruments back in use faster.



  • Can be customized for specific applications with specialty racks for endoscopes, robotic surgical instruments, luer connector tubes and more
  • Simple user-friendly controls are easy to understand - Manual count-up timer enables user to define drying time. Green/red STATUS light enables easy process monitoring
  • Protects lumened devices during the drying process - Low air pressure dries efficiently without stressing lumens
  • Handles multiple channels at a time for fast, productive, timed drying
  • Provides Clinically Dry robotic devices in 30 minutes. Stages devices to enhance department workflow
  • Can be easily added to your existing Belimed Drying cabinets
